NEW QUESTION # 24
You are implementing VXLAN broadcast domains in your data center environment. Which two statements are correct in this scenario? (Choose two.)
- A. The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets.
- B. The VNI is a 16-bit value and can range from 0 through 16.777.215.
- C. Layer 2 frames are encapsulated by the source VTEP.
- D. A VXLAN packet does not contain a VLAN ID.
Answer: C,D
Explanation:
* VXLAN Overview:
* VXLAN (Virtual Extensible LAN) is a network virtualization technology that encapsulates Layer
2 Ethernet frames into Layer 3 UDP packets for transmission over an IP network. It allows the creation of Layer 2 overlay networks across a Layer 3 infrastructure.
* Understanding VXLAN Components:
* VTEP (VXLAN Tunnel Endpoint):A VTEP is responsible for encapsulating and decapsulating Ethernet frames into and from VXLAN packets.
* VNI (VXLAN Network Identifier):A 24-bit identifier used to distinguish different VXLAN segments, allowing for up to 16 million unique segments.
* Correct Statements:
* C. Layer 2 frames are encapsulated by the source VTEP:This is correct. In a VXLAN deployment, the source VTEP encapsulates the original Layer 2 Ethernet frame into a VXLAN packet before transmitting it over the IP network to the destination VTEP, which then decapsulates it.
* A. A VXLAN packet does not contain a VLAN ID:This is correct. The VXLAN header does not carry the original VLAN ID; instead, it uses the VNI to identify the network segment. The VLAN ID is local to the switch and does not traverse the VXLAN tunnel.
* Incorrect Statements:
* B. The VNI must match the VLAN tag to ensure that the remote VTEP can decapsulate VXLAN packets:This is incorrect. The VNI is independent of the VLAN tag, and the VLAN ID does not need to match the VNI. The VNI is what the remote VTEP uses to identify the correct VXLAN segment.
* D. The VNI is a 16-bit value and can range from 0 through 16,777,215:This is incorrect because the VNI is a 24-bit value, allowing for a range of 0 to 16,777,215.
Data Center References:
* VXLAN technology is critical for modern data centers as it enables scalability and efficient segmentation without the constraints of traditional VLAN limits.
NEW QUESTION # 25

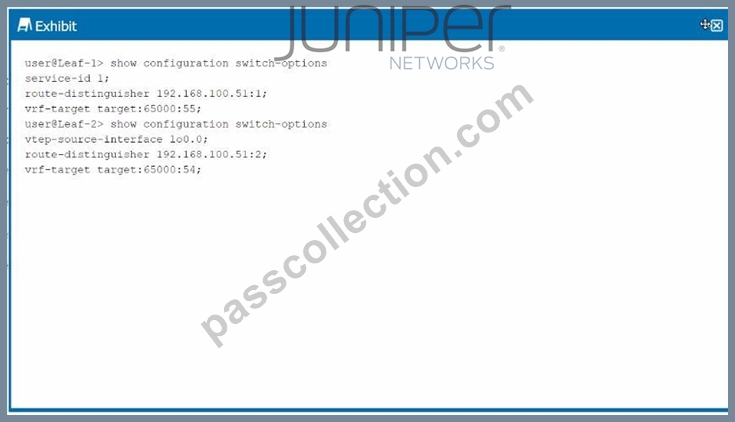

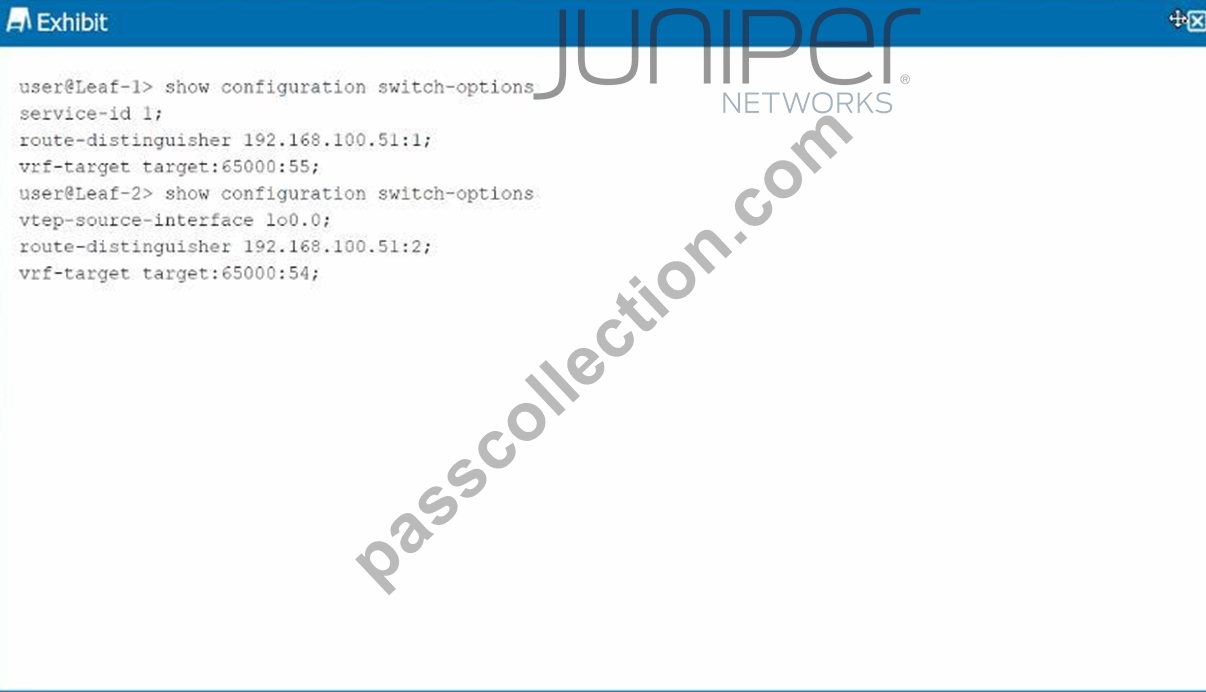

Exhibit.
Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
- A. Configure the set switch-options service-id 1 parameter on Leaf-2.
- B. Configure the set switch-options vtep-source-interface 100. 0 parameter on Leaf-1.
- C. Configure the set switch-options route-distinguisher 192.168.100.51:2 parameter on Leaf-1.
- D. Configure the set switch-options vrf-target target: 65000:55 parameter on Leaf-2.
Answer: A,D
Explanation:
* Review of the Exhibit:
* The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.
* Service-ID Consistency:
* The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.
* VRF Target Consistency:
* The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.
Conclusion:
* Option B:Correct-Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.
* Option D:Correct-The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.
NEW QUESTION # 26

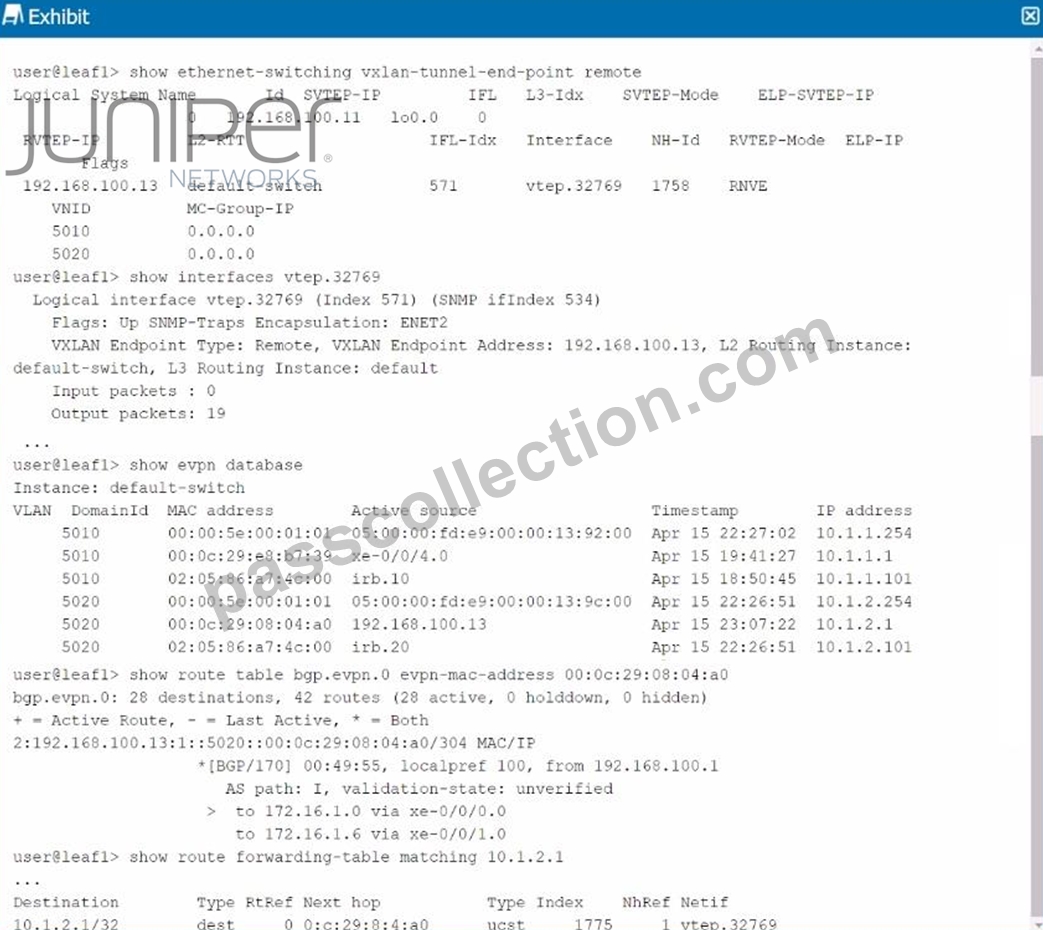

Exhibit.
Referring to the exhibit, Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) in a data center that uses an ERB architecture. What do you determine from the output?
- A. The traffic is entering the VXLAN tunnel.
- B. The traffic is failing because load balancing is not configured correctly.
- C. The irb.20 interface is not configured on leaf1.
- D. Host1 and Host2 are directly connected to leaf1.
Answer: A
Explanation:
Understanding the Problem:
* Host1 (10.1.1.1) is failing to communicate with Host2 (10.1.2.1) within an EVPN-VXLAN environment using ERB architecture.
Analysis of the Exhibit:
* The provided output includes information from the show route forwarding-table matching command for IP 10.1.2.1. The next hop is shown as vtep.32769, which indicates that the traffic destined for 10.1.2.1 is being forwarded into the VXLAN tunnel with the correct VTEP (VXLAN Tunnel Endpoint).
Conclusion:
* Option B:Correct-The traffic from Host1 is entering the VXLAN tunnel, as evidenced by the next hop pointing to a VTEP. However, the issue could lie elsewhere, possibly with the remote VTEP, routing configurations, or the receiving leaf/spine devices.
NEW QUESTION # 27
You are asked to deploy 100 QFX Series devices using ZTP Each OFX5120 requires a different configuration. In this scenario, what are two components that you would configure on the DHCP server?
(Choose two.)
- A. the IP address of the FTP server
- B. the MAC address of the FTP server
- C. the management IP address for each OFX5120
- D. the MAC address for each OFX5120
Answer: C,D
Explanation:
* Zero Touch Provisioning (ZTP):
* ZTP allows for the automated configuration of network devices, like QFX Series switches, without manual intervention. During ZTP, a switch will obtain its configuration from a DHCP server and then download the required software and configuration files from a specified server (e.
g., FTP, HTTP).
* DHCP Server Configuration:
* Option B:The DHCP server needs to know theMAC address for each QFX5120to provide a specific configuration based on the device identity. By mapping the MAC address to a particular configuration, the DHCP server can ensure that each switch gets the correct configuration.
* Option D:Themanagement IP address for each QFX5120must also be assigned by the DHCP server. This IP address allows the device to communicate on the network and access the configuration files and other required resources during the ZTP process.
Conclusion:
* Option B:Correct-MAC addresses allow the DHCP server to identify each QFX5120 and assign the appropriate configuration.
* Option D:Correct-Management IP addresses are essential for network communication during ZTP.
NEW QUESTION # 28
Which two statements are true about IP fabrics using unnumbered BGP? (Choose two.)
- A. Unnumbered BGP requires that family inet6is configured on each interface.
- B. Unnumbered BGP peering automatically provisions IPv4 peering.
- C. Unnumbered BGP peering automatically provisions IPv6 peering.
- D. Unnumbered BGP requires that family inet is configured on each interface.
Answer: B,D
Explanation:
* Understanding Unnumbered BGP:
* Unnumbered BGP (Border Gateway Protocol) allows BGP peering between routers without assigning specific IP addresses to the interfaces. Instead, it uses the loopback address or another router identifier for the BGP session, making IP address management more straightforward in large-scale networks.
* Family inet Configuration:
* Option C:The family inet configuration is required on each interface involved in unnumbered BGP peering to support IPv4 address families. This ensures that IPv4 peering sessions can be established between devices.
* Automatic IPv4 Peering:
* Option D:Unnumbered BGP peering automatically provisions IPv4 peering sessions. This simplifies the configuration by eliminating the need to manually assign and manage IP addresses for BGP peering.
Conclusion:
* Option C:Correct-Unnumbered BGP requires the family inet configuration for IPv4.
* Option D:Correct-Unnumbered BGP automatically provisions IPv4 peering, simplifying setup.
NEW QUESTION # 29
You are adding a server lo a tenant's network within your data center and must limit access to a specific traffic type within the tenant network without pushing all tenant traffic through a firewall.
What will satisfy this requirement?
- A. Use route leaking with EVPN and a routing policy.
- B. Put the new server on a unique subnet within the tenant's network.
- C. Use a static route in the tenant VRF with a firewall as the next hop for traffic to the new server.
- D. Use filter-based forwarding.
Answer: D
Explanation:
* Controlling Traffic Within a Tenant's Network:
* The requirement is to limit access to specific traffic types within a tenant's network without routing all tenant traffic through a firewall. This requires a selective method that can direct specific types of traffic to different paths based on the nature of the traffic.
* Filter-Based Forwarding (FBF):
* FBF is a technique that allows for routing decisions based on filters applied to the traffic, such as matching on source IP addresses, destination IP addresses, or even specific application types (like HTTP or FTP). This allows specific types of traffic to be forwardedto a specific next hop (e.g., a firewall) without affecting the entire traffic flow within the tenant's network.
Conclusion:
* Option B:Correct-Filter-based forwarding allows for granular control of traffic, ensuring that only specific types of traffic within the tenant's network are redirected through a firewall, satisfying the requirement.
NEW QUESTION # 30
You are deploying multiple Juniper switches al the same location. Your switches are currently using the factory-default configuration.
In this scenario, which two statements are correct? (Choose two.)
- A. The switch will try to request an IP address from a DHCP server using only the management interface.
- B. The DHCP server configuration cannot provide Junos version requirements to DHCP clients.
- C. The DHCP server configuration can provide Junos version requirements to DHCP clients.
- D. The switch will try to request an IP address from a DHCP server using all interfaces that are connected and are operational.
Answer: C,D
Explanation:
* DHCP Behavior in Factory-Default Configuration:
* Option B:In the factory-default configuration, Juniper switches are designed to send DHCP requests on all operational interfaces. This behavior ensures that the switch can obtain an IP address for management and further configuration from any available DHCP server.
* Option D:The DHCP server can provide additional configuration parameters, including the required Junos version. This allows for automated provisioning and ensures that the switch is running the correct software version.
Conclusion:
* Option B:Correct-The switch will use any operational interface to request an IP address via DHCP.
* Option D:Correct-The DHCP server can specify Junos version requirements, enabling automated software management.
NEW QUESTION # 31

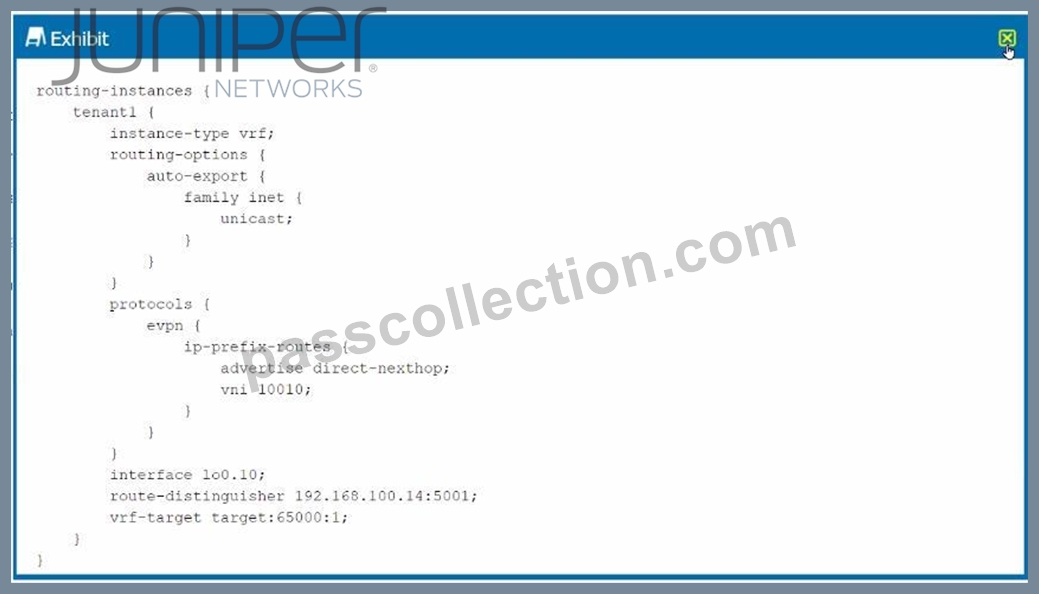

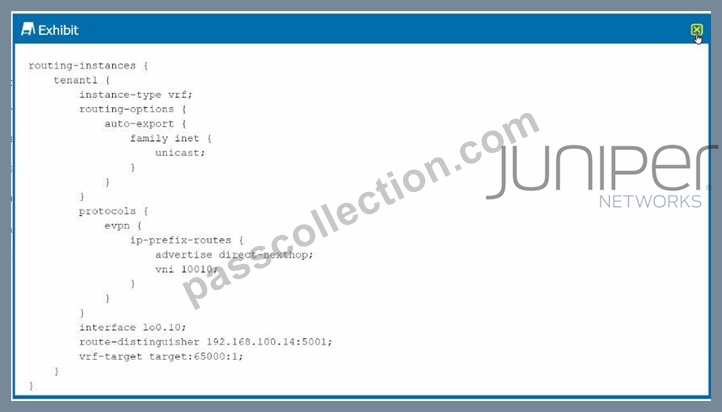

Exhibit.
You want to enable the border leaf device to send Type 5 routes of local networks to the border leaf device in another data center. What must be changed to the configuration shown in the exhibit to satisfy this requirement?
- A. Move vrf-target target: 65000:1 to the evpn hierarchy.
- B. Change: 5001 in the route-distinguisher to : 10010.
- C. Add a VLAN configuration with an 13-interface to the tenant1 routing instance.
- D. Add encapsulation vxlan to the evpn hierarchy.
Answer: A
Explanation:
In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
* Understanding EVPN Type 5 Routes:
* EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
* VRF Target Setting:
* The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
* Other Options:
* Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
* Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
* Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.
NEW QUESTION # 32
Which three statements are correct about VXLAN control planes? (Choose three.)
- A. EVPN is inefficient and does not scale well.
- B. Multicast does not require as many resources.
- C. Both multicast and EVPN can facilitate MAC learning.
- D. Multicast is not agile and requires manual VNI mapping.
- E. EVPN enables fast convergence and updates.
Answer: B,C,E
Explanation:
* VXLAN Control Planes:
* VXLAN (Virtual Extensible LAN) uses different control planes to handle MAC learning and traffic forwarding. The control planes include multicast and EVPN (Ethernet VPN).
* Multicast and EVPN Comparison:
* Option B:Both multicast and EVPN can be used for MAC learning in a VXLAN environment.
Multicast is a more traditional approach, while EVPN is more advanced and supports distributed MAC learning.
* Option D:EVPN offers benefits such as fast convergence and rapid updates, making it more efficient and scalable for modern data center environments.
* Option E:Multicast does not require as many resources because it relies on traditional Layer 3 multicast mechanisms to distribute broadcast, unknown unicast, and multicast (BUM) traffic.
However, it can be less flexible and less scalable compared to EVPN.
Conclusion:
* Option B:Correct-Both control planes facilitate MAC learning.
* Option D:Correct-EVPN provides fast convergence and updates.
* Option E:Correct-Multicast is resource-efficient but less flexible.
NEW QUESTION # 33

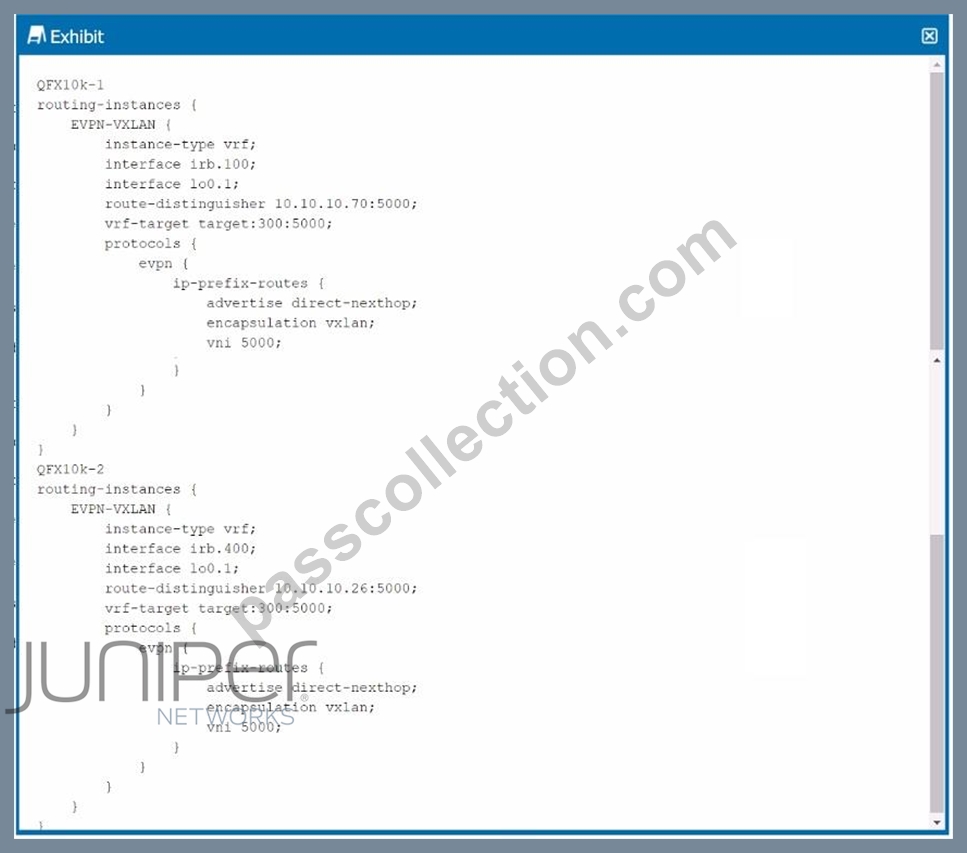

Exhibit.

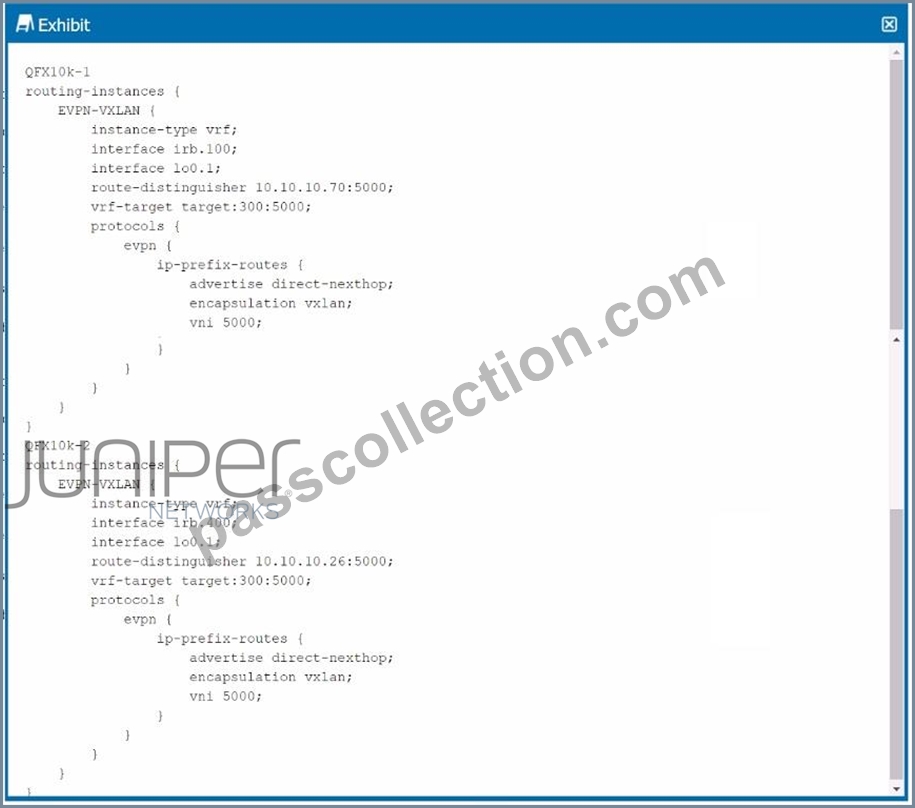

You have a sample configuration for connecting two sites through EVPN-VXLAN by exchanging IP prefix routes.
Referring to the exhibit, which two statements regarding the configuration are true? {Choose two.)
- A. The VNI must match on all devices for the same customer.
- B. The VNI should be unique on all devices for each customer site.
- C. The advertise direct-nexthop option enables the receiver to resolve the next-hop route using only information carried in the Type 2 route.
- D. The advertise direct-nexthop option enables the receiver to resolve the next-hop route using only information carried in the Type 5 route.
Answer: A,D
Explanation:
EVPN-VXLAN Configuration:
* The configuration provided in the exhibit shows an EVPN-VXLAN setup where IP prefix routes are exchanged between two sites. The advertise direct-nexthop option and the VNI (Virtual Network Identifier) settings are crucial in this context.
Advertise Direct-Nexthop:
* Option A:The advertise direct-nexthop option ensures that the next-hop route is resolved using only the information carried in the EVPN Type 5 route. Type 5 routes are used for IP prefix advertisement in EVPN, which is key to enabling Layer 3 interconnectivity between different VXLAN segments.
VNI Consistency:
* Option C:For the same customer across different devices, the VNI must be consistent. This consistency ensures that all devices can correctly map traffic to the appropriate VXLAN segment, maintaining seamless Layer 2 and Layer 3 connectivity.
NEW QUESTION # 34
You are asked to identify microburst traffic occurring in the network leading lo packet drops in your data center switches Which two tools would be used in this scenario? (Choose two.)
- A. port mirroring
- B. port buffer monitoring
- C. Traceoptions
- D. syslog
Answer: A,B
Explanation:
* Identifying Microburst Traffic:
* Microbursts are short spikes in network traffic that can overwhelm buffers and cause packet drops. Detecting and analyzing microbursts is crucial for understanding where packet loss might be occurring in a data center network.
* Port Buffer Monitoring:
* Port Buffer Monitoring:This tool specifically tracks the usage of switch buffers, helping to identify when microbursts are causing buffers to overflow, leading to packet drops.
* Port Mirroring:
* Port Mirroring:This tool allows you to monitor real-time traffic on a specific port by copying the traffic to another port where it can be analyzed, often with a packet analyzer. While port mirroring doesn't directly detect microbursts, it helps capture traffic patterns that can indicate microbursts.
Conclusion:
* Option C:Correct-Port buffer monitoring directly identifies buffer overflows caused by microbursts.
* Option A:Correct-Port mirroring allows for the detailed capture and analysis of traffic patterns, which can reveal microburst behavior.
Options B(Traceoptions) andD(Syslog) are less effective in identifying microburst traffic. Traceoptions focus on control plane traffic debugging, and Syslog is more about logging system events than detecting high- frequency traffic spikes.
NEW QUESTION # 35

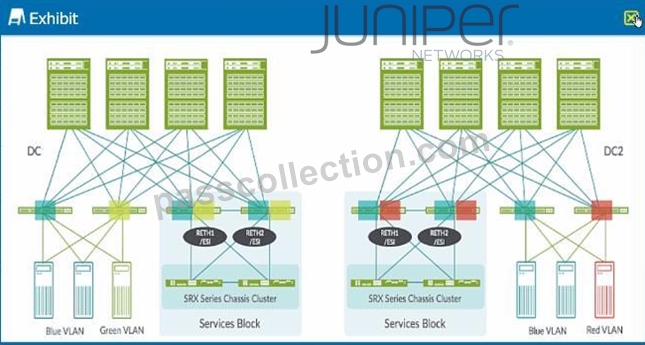

Exhibit.
Both DC and DC2 ate using EVPN-VXLAN technology deployed using an ERB architecture. A server on the Red VLAN must communicate with a server on the Green VLAN. The Blue VLAN in DC and DC2 needs to be the same VLAN.
Which statement is correct in this scenario?
- A. An interconnect is required between the four SRX Series devices; the Blue VLAN must be stretched and a transit VNI must be added for the Red and Green VLANs.
- B. The eight spine devices must be configured as border spine devices; a full mush interconnect must exist between all eight spine devices and the Blue VLAN must be stitched together
- C. An interconnect is required between four leaf devices in the services blocks; the Red VLAN and the Green VLAN must be stitched and the Blue VLAN must be stretched.
- D. A lean super spine device must be added to DC and DC2; all VLANs must be stretched to the lean super spine device and the lean super spine devices must stitch all the VLANs together.
Answer: A
Explanation:
* ERB Architecture in EVPN-VXLAN:
* ERB (Edge Routed Bridging) architecture is commonly used in data center networks where routing decisions are made at the network edge (leaf or border devices), while bridging (Layer 2 forwarding) is extended across the fabric. This architecture allows for efficient L3 routing while still enabling L2 services like VLANs to span across multiple locations.
* VLAN and VNI Configuration:
* The scenario specifies that a server on the Red VLAN needs to communicate with a server on the Green VLAN. Since these VLANs are in different data centers (DC and DC2), and given the use of EVPN-VXLAN, the communication between these VLANs will require atransit VNI(Virtual Network Identifier). This transit VNI will allow traffic to traverse the VXLAN tunnel across the DCI (Data Center Interconnect).
* Interconnect between SRX Series Devices:
* The exhibit shows SRX Series Chassis Clusters used as service devices (likely for firewalling or other security services). These devices need to be interconnected between the two data centers to ensure that VLANs can communicate effectively. The Blue VLAN needs to be stretched between DC and DC2 to maintain the same Layer 2 domain across both data centers.
Conclusion:
* Option B:Correct-Interconnecting the SRX Series devices will ensure the necessary service chaining, while stretching the Blue VLAN and adding a transit VNI for the Red and Green VLANs will enable the required communication across the data centers.
NEW QUESTION # 36
Which two statements are true about IP fabrics using unnumbered BGP? (Choose two.)
- A. Unnumbered BGP peering automatically provisions IPv4 peering.
- B. Unnumbered BGP peering automatically provisions IPv6 peering.
- C. Unnumbered BGP requires that family inet6 is configured on each interface.
- D. Unnumbered BGP requires that family inet is configured on each interface.
Answer: A,C
Explanation:
https://www.juniper.net/documentation/us/en/software/nce/nce-225-bgp-unnumbered/index.html
NEW QUESTION # 37
Exhibit.

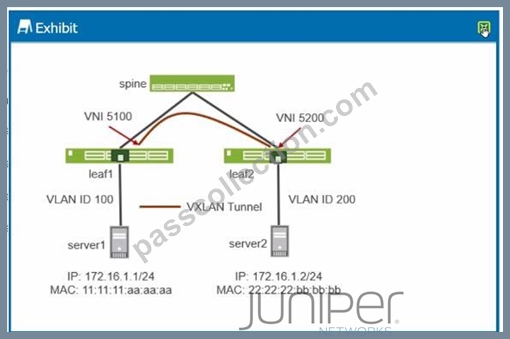

A VXLAN tunnel has been created between leaf1and Ieaf2 in your data center. Referring to the exhibit, which statement is correct?
- A. Traffic sent from server1to server2 will be dropped on Ieaf2.
- B. Traffic sent from server1to server2 will be tagged with VLAN ID 100 on Ieaf2 and forwarded to server2.
- C. Traffic sent from server1to server2 will be dropped on leaf1.
- D. Traffic sent from server1to server2 will be tagged with VLAN ID 200 on Ieaf2 and forwarded to server2.
Answer: D
Explanation:
* Understanding VXLAN Tunneling:
* VXLAN (Virtual Extensible LAN) is a network virtualization technology that addresses the scalability issues associated with traditional VLANs. VXLAN encapsulates Ethernet frames in UDP, allowing Layer 2 connectivity to extend across Layer 3 networks.
* Each VXLAN network is identified by a unique VXLAN Network Identifier (VNI). In this exhibit, we have two VNIs, 5100 and 5200, assigned to the VXLAN tunnels between leaf1 and leaf2.
* Network Setup Details:
* Leaf1:Connected to Server1 with VLAN ID 100 and associated with VNI 5100.
* Leaf2:Connected to Server2 with VLAN ID 200 and associated with VNI 5200.
* Spine:Acts as the interconnect between leaf switches.
* Traffic Flow Analysis:
* When traffic is sent from Server1 to Server2, it is initially tagged with VLAN ID 100 on leaf1.
* The traffic is encapsulated into a VXLAN packet with VNI 5100 on leaf1.
* The packet is then sent across the network (via the spine) to leaf2.
* On leaf2, the VXLAN header is removed, and the original Ethernet frame is decapsulated.
* Leaf2 will then associate this traffic with VLAN ID 200 before forwarding it to Server2.
* Correct Interpretation of the Exhibit:
* The traffic originating from Server1, which is tagged with VLAN ID 100, will be encapsulated into VXLAN and transmitted to leaf2.
* Upon arrival at leaf2, it will be decapsulated, and since it is associated with VNI 5200 on leaf2, the traffic will be retagged with VLAN ID 200.
* Therefore, the traffic will reach Server2 tagged with VLAN ID 200, which matches the network configuration shown in the exhibit.
* Data Center References:
* This configuration is typical in data centers using VXLAN for network virtualization. It allows isolated Layer 2 segments (VLANs) to be stretched across Layer 3 boundaries while maintaining distinct VLAN IDs at each site.
* This approach is efficient for scaling large data center networks while avoiding VLAN ID exhaustion and enabling easier segmentation.
In summary, the correct behavior, as per the exhibit and the detailed explanation, is that traffic sent from Server1 will be tagged with VLAN ID 200 when it reaches Server2 via leaf2. This ensures proper traffic segmentation and handling across the VXLAN-enabled data center network.
NEW QUESTION # 38
You are deploying a Clos IP fabric with an oversubscription ratio of 3:1.
In this scenario, which two statements are correct? (Choose two.)
- A. The oversubscription ratio remains the same when you remove spine devices.
- B. The oversubscription ratio increases when you remove spine devices.
- C. The oversubscription ratio decreases when you add spine devices.
- D. The oversubscription ratio remains the same when you add spine devices.
Answer: B,C
Explanation:
* Understanding Oversubscription in a Clos Fabric:
* The oversubscription ratio in a Clos IP fabric measures the ratio of the amount of edge (leaf) bandwidth to the core (spine) bandwidth. An oversubscription ratio of 3:1 means that there is three times more edge bandwidth compared to core bandwidth.
* Impact of Adding/Removing Spine Devices:
* Option C:If youremove spine devices, the total available core bandwidth decreases, while the edge bandwidth remains the same. This results in anincrease in the oversubscription ratio because there is now less core bandwidth to handle the same amount of edge traffic.
* Option B:Conversely, if youadd spine devices, the total core bandwidth increases. This decreases the oversubscription ratio because more core bandwidth is available to handle the edge traffic.
Conclusion:
* Option C:Correct-Removing spine devices increases the oversubscription ratio.
* Option B:Correct-Adding spine devices decreases the oversubscription ratio.
NEW QUESTION # 39
You are using E8GP peering in an underlay IP fabric. Which two statements are correct in this scenario?
(Choose two.)
- A. EBGP peering does not require an IGP protocol tor adjacency establishment.
- B. Every leaf node has one peering session to every spine node.
- C. EBGP peering requires an IGP protocol tor adjacency establishment.
- D. Every leaf node has a peering session to every other leaf node.
Answer: A,B
Explanation:
* Understanding EBGP in an IP Fabric:
* EBGP (External Border Gateway Protocol) is commonly used in IP fabrics to establish peering between routers, such as leaf and spine nodes, without relying on an Interior Gateway Protocol (IGP) like OSPF or IS-IS.
* IGP Requirement for EBGP:
* Option B:EBGP peering does not require an IGP for adjacency establishment. This is because EBGP peers are typically directly connected, and BGP establishes its own sessions without needing an underlying IGP.
* Leaf-to-Spine Peering:
* Option C:In a typical IP fabric, each leaf node establishes an EBGP session with every spine node. This ensures full connectivity between leaves and spines, facilitating efficient routing and forwarding within the fabric.
Conclusion:
* Option B:Correct-EBGP does not require an IGP for establishing peering sessions.
* Option C:Correct-Each leaf node peers with every spine node, which is a standard practice in IP fabrics to ensure connectivity and redundancy.
NEW QUESTION # 40
Exhibit.
Connections between hosts connected to Leaf-1 and Leaf-2 are not working correctly.
Referring to the exhibit, which two configuration changes are required to solve the problem? (Choose two.)
- A. Configure the setswitch-options vtep-source-interface100. 0 parameter on Leaf-1.
- B. Configure the set switch-options service-id 1 parameter on Leaf-2.
- C. Configure the set switch-options vrf-target target: 65000:55 parameter on Leaf-2.
- D. Configure the setswitch-options route-distinguisher 192.168.100.51:2 parameter on Leaf-1.
Answer: B,C
Explanation:
* Review of the Exhibit:
* The exhibit shows the switch configuration for Leaf-1 and Leaf-2. The configurations include route distinguishers, VRF targets, and service IDs, all of which are crucial for ensuring proper operation in an EVPN-VXLAN environment.
* Service-ID Consistency:
* The service ID must be consistent across all participating leaf devices in the same EVPN instance to ensure that they are part of the same VXLAN overlay network.
* VRF Target Consistency:
* The vrf-target parameter must also be consistent across devices to ensure that VRFs (Virtual Routing and Forwarding instances) are correctly imported and exported between leaf nodes.
Conclusion:
* Option B:Correct-Setting the same service-id on Leaf-2 ensures that it is part of the same VXLAN overlay as Leaf-1.
* Option D:Correct-The vrf-target on Leaf-2 should match Leaf-1 to ensure consistent routing policies and proper route exchange.
NEW QUESTION # 41
Exhibit.
You have a sample configuration for connecting two sites through EVPN-VXLAN by exchanging IP prefix routes.
Referring to the exhibit, which two statements regarding the configuration are true? {Choose two.)
- A. The VNI must match on all devices for the same customer.
- B. The VNI should be unique on all devices for each customer site.
- C. The advertise direct-nexthop option enables the receiver to resolve the next-hop route using only information carried in the Type 2 route.
- D. The advertise direct-nexthop option enables the receiver to resolve the next-hop route using only information carried in the Type 5 route.
Answer: A,D
Explanation:
EVPN-VXLAN Configuration:
* The configuration provided in the exhibit shows an EVPN-VXLAN setup where IP prefix routes are exchanged between two sites. The advertise direct-nexthop option and the VNI (Virtual Network Identifier) settings are crucial in this context.
Advertise Direct-Nexthop:
* Option A:The advertise direct-nexthop option ensures that the next-hop route is resolved using only the information carried in the EVPN Type 5 route. Type 5 routes are used for IP prefix advertisement in EVPN, which is key to enabling Layer 3 interconnectivity between different VXLAN segments.
VNI Consistency:
* Option C:For the same customer across different devices, the VNI must be consistent. This consistency ensures that all devices can correctly map traffic to the appropriate VXLAN segment, maintaining seamless Layer 2 and Layer 3 connectivity.
NEW QUESTION # 42
Exhibit.

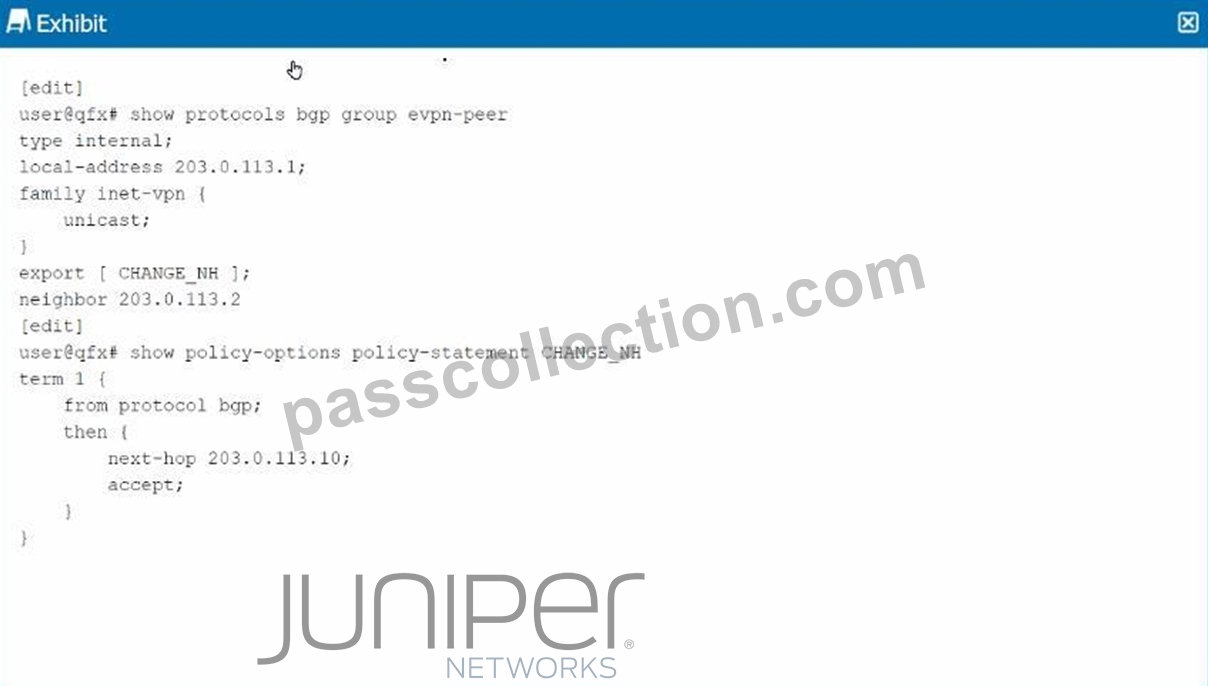

Given the configuration shown in the exhibit, why has the next hop remained the same for the EVPN routes advertised to the peer 203.0.113.2?
- A. The export policy is incorrectly configured.
- B. EVPN routes cannot have the next hop changed.
- C. The vpn-apply-export parameter must be applied to this peer.
- D. The vrf-export parameter must be applied.
Answer: C
Explanation:
* Understanding the Configuration:
* The configuration shown in the exhibit involves an EVPN (Ethernet VPN) setup using BGP as the routing protocol. The export policy named CHANGE_NH is applied to the BGP group evpn- peer, which includes a rule to change the next hop for routes that match the policy.
* Issue with Next Hop Not Changing:
* The policy CHANGE_NH is correctly configured to change the next hop to 203.0.113.10 for the matching routes. However, the next hop remains unchanged when advertising EVPN routes to the peer 203.0.113.2.
* Reason for the Issue:
* In Junos OS, when exporting routes for VPNs (including EVPN), the next-hop change defined in a policy will not take effect unless the vpn-apply-export parameter is used inthe BGP configuration. This parameter ensures that the export policy is applied specifically to VPN routes.
* The vpn-apply-export parameter must be included to apply the next-hop change to EVPN routes.
* Correct Answer Explanation:
* D. The vpn-apply-export parameter must be applied to this peer:This is the correct solution because the next hop in EVPN routes won't be altered without this parameter in the BGP configuration. It instructs the BGP process to apply the export policy to the EVPN routes.
Data Center References:
* This behavior is standard in EVPN deployments with Juniper Networks devices, where the export policies applied to VPN routes require explicit invocation using vpn-apply-export to take effect.
NEW QUESTION # 43
Exhibit.
You want to enable the border leaf device to send Type 5 routes of local networks to the border leaf device in another data center. What must be changed to the configuration shown in the exhibit to satisfy this requirement?
- A. Move vrf-target target: 65000:1 to the evpn hierarchy.
- B. Change: 5001 in the route-distinguisher to : 10010.
- C. Add a VLAN configuration with an 13-interface to the tenant1 routing instance.
- D. Add encapsulation vxlan to the evpn hierarchy.
Answer: A
Explanation:
In this scenario, you want the border leaf device to advertise Type 5 EVPN routes to another border leaf in a different data center. Type 5 routes in EVPN are used to advertise IP prefixes, which means that for proper route advertisement, you need to configure the correct settings within the evpn hierarchy.
Step-by-Step Analysis:
* Understanding EVPN Type 5 Routes:
* EVPN Type 5 routes are used to advertise IP prefixes across EVPN instances, which allow different data centers or networks to exchange routing information effectively.
* VRF Target Setting:
* The vrf-target configuration is crucial because it defines the export and import policies for the VRF within the EVPN instance. For EVPN Type 5 routes to be advertised to other border leaf devices, the vrf-target needs to be correctly configured under the evpn hierarchy, not just within the routing instance.
Command to solve this:
move vrf-target target:65000:1 to evpn
* Other Options:
* Option B:Adding a VLAN configuration would not address the requirement to advertise Type 5 routes.
* Option C:Adding VXLAN encapsulation may be necessary for other scenarios but does not directly address the Type 5 route advertisement.
* Option D:Changing the route-distinguisher will differentiate routes but does not impact the advertisement of Type 5 routes to other data centers.
By moving the vrf-target to the evpn hierarchy, you enable the proper route advertisement, ensuring that the Type 5 routes for local networks are shared with other data center border leaf devices. This is aligned with best practices for multi-data center EVPN implementations, which emphasize the correct placement of routing policies within the EVPN configuration.
NEW QUESTION # 44
You are asked to interconnect Iwo data centers using a method that provides EVPN Type 2 connectivity, is highly scalable, and limits VXLAN tunnels between border leafdevices. What will satisfy these requirements?
- A. EVPN Type 2 stretch
- B. IP VPN
- C. over the top full-mesh interconnect
- D. Type 2 seamless stitching
Answer: D
Explanation:
* Requirement Analysis:
* The scenario requires a solution to interconnect two data centers that supports EVPN Type 2 connectivity. The solution must be highly scalable and must minimize the number of VXLAN tunnels between border leaf devices.
* Understanding Type 2 Seamless Stitching:
* Option D:Type 2 seamless stitchingis a method used in EVPN to provide Layer 2 connectivity (such as MAC address mobility) across different VXLAN segments. It is scalable because it allows only necessary tunnels to be established between border leaf devices, reducing the overhead of maintaining a full mesh of VXLAN tunnels.
Conclusion:
* Option D:Correct-Type 2 seamless stitching satisfies the requirement by enabling scalable, efficient interconnection of two data centers with minimal VXLAN tunnels.
NEW QUESTION # 45
You are deploying an IP fabric with an oversubscription ratio of 3:1.
In this scenario, which two statements are correct? (Choose two.)
- A. The oversubscription ratio remains the same when you remove leaf devices.
- B. The oversubscription ratio remains the same when you add leaf devices.
- C. The oversubscription ratio decreases when you add leaf devices.
- D. The oversubscription ratio increases when you remove leaf devices.
Answer: B,D
Explanation:
* Understanding Oversubscription Ratio in IP Fabrics:
* The oversubscription ratio in an IP fabric typically refers to the ratio of the available bandwidth at the edge of the network (leaves) to the available bandwidth at the core or spine. A 3:1 oversubscription ratio means that for every 3 units of bandwidth at the leaves, there is 1 unit of bandwidth at the spine.
* Impact of Adding or Removing Leaf Devices:
* Removing Leaf Devices:When you remove leaf devices, the amount of total edge bandwidth decreases while the bandwidth in the spine remains constant. This causes the oversubscription ratio toincreasebecause there is now less total bandwidth to distribute across the same amount of spine bandwidth.
* Adding Leaf Devices:Conversely, when you add leaf devices, the total edge bandwidth increases. Since the spine bandwidth remains the same, the oversubscription ratio would remain the same if the additional leaves consume their share of the available bandwidth proportionally.
Conclusion:
* Option C:Correct-Removing leaf devices increases the oversubscription ratio.
* Option D:Correct-Adding leaf devices typically maintains the oversubscription ratio assuming uniform bandwidth distribution.
NEW QUESTION # 46
......
Juniper JN0-683 Exam Syllabus Topics:
| Topic | Details |
|---|---|
| Topic 1 |
|
| Topic 2 |
|
| Topic 3 |
|
| Topic 4 |
|
JN0-683 Dumps Real Exam Questions Test Engine Dumps Training: https://www.passcollection.com/JN0-683_real-exams.html
JN0-683 exam dumps and online Test Engine: https://drive.google.com/open?id=1JOPUujY6pDUIw-UsqMiOBKfKIdL7X7UF
